[h=2]openspa-6.0-gstreamer-1.9.0-dm800se-sim2-04052016-gs[/h]

this image openspa-6.0-vusolo- usb
modify to work on sim2 dm800se
(patches from jasper...thanks)

CLEAN

WORKS ON
flash
(i dont have test on anther multiboot BUT with obh 0.4 on flash, openmultiboot works with openspa-6.0 on multiboot withhttp://www.dreamoem.com/showthread.p...-openmultiboot from line : Turn off your receiver and take off usb stik and follow .....)
this image is big and after install use flashexpader or multiboot


on zip there is ,nfi , and a folder, paste on /usr/lib/enigma2 after flashexpader

i have put two files for download
1. from vusolo gstreamer 1.9.0 (lcd dont work)http://www.mediafire.com/download/8s...4052016-gs.zip
2. from zgemma h2h gstreamer 0.10.xx (lcd work)http://www.mediafire.com/download/cb...4052015-gs.nfi


FEEDS-ADDONS WORKS
UPDATE your own risk WORKS

TELNET - FTP : USER : root , PASS : openspa​



[coolmeen]

OpenPLi 4.0-DM800se - ssl84D - sim2

BackUp OpenPLi 4.0 of 09/05/2016 for DM800SE Sim 2
mono tunner
plugin:

- Satvenus panel
- PANDASAT Free IPTV
- japhar-addons-manager_5.2
- Flashexpander Modded OpenPLi
- ClearMem
- FlashBackup
- Cccams 2.2.1
- Oscam


https://userscloud.com/sh4yyjksblgc



[coolmeen]

Sim2-dreambox-image-dm800se-20160520-#84d-Jasper-20160521

​

DMM Image Experimental (opendreambox-2.0.0)


Clean, no changes.

Sim2

SSL84d

Enigma2: 2015-12-30-tarball

################################################## #######################################

Webinterface is working.
Teletext is working.
WLAN is working

################################################## #######################################

Download:

2016-05-21

https://mega.nz/#!p1IF0JDI!dzPEZY0dJ...8b9mgDcjikv97U



Jasper



[coolmeen]

italysat-release-8.0.220-sim2-dm800se-20160430

Download:
​

http://www.mediafire.com/download/9g...84D-Houara.nfi



[coolmeen]

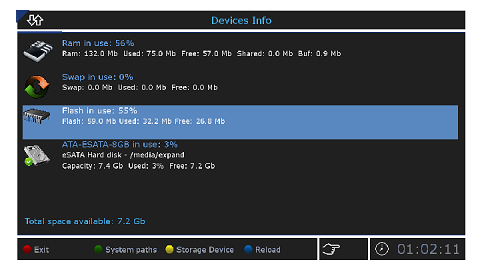

dreamelite-dm800se-expand4-eB-sim2-20160513222309









# Flash Images

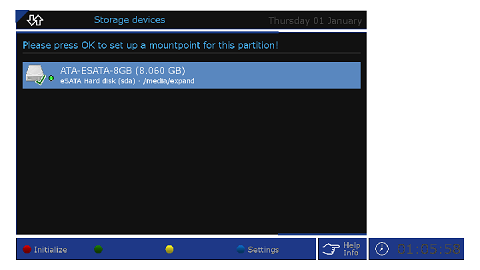

# USB Stick (ext3/ext4) mount /media/expand (files on the stick will be deleted)

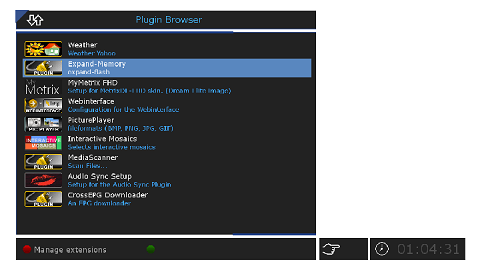

# Call the Plugins and Expand-memory with start ok

# Have fun

--------------------

# Images flashen

# USB Stick (ext3/ext4) einhängen nach /media/expand (Dateien auf dem Stick werden gelöscht)

# Plugins aufrufen und Expand-memory mit ok starten

# Viel Spaß



---------------------------------
​

https://workupload.com/file/KdzKeyG

-----------------------------------------

elblindo​



[coolmeen]

Sim2-Unoff.-Gstreamer 1.9.0.1-DM800SE-2016-05 OpenPLi 4-FE-Jasper-20160514

​

changes:

FE
added a modified FlashExpander which is deleting directories in /usr to get more free Flash memory

Sim2

SSL84d

################################################## #######################################
Extend your Flash memory to an USB memory stick:

1. add an empty USB memory stick to your box (be aware the content will be deleted)
2. prepare your USB memory stick for FlashExpander

Menu
Setup
System
Harddisk
Red: Initialize
choose your USB memory stick which you want to use for FlashExpander (be aware the content will be deleted)
Initialize

3. Reboot your box (this is important also if you just use an already ext3 or ext4 formatted USB memory stick without initialize)

4. Extend your Flash memory using FlashExpander

Menu
Plugins
Start Flashexpander
choose your USB memory device and start the copy process (this takes a few minutes)
a message will appear to restart the box

5. check if FlashExpander is working

Menu
Plugins
Start Flashexpander

6. now you should have plenty of free Flash memory
New installed Plugins will be installed on extended Flash on USB


################################################## #######################################

Hi everyone,



Since I'm going away for a while I thought it would be nice to release a last batch of testing images containing upstream work from various OpenPLi forum-members.

So I'd like to dedicate these images to mx3L, christophecvr, samsamsam and Taapat for making it possible!


Lot's of changes this time, so be sure to read the full post before asking any questions

Let's first start with the things I didn't look into because I had to put my priority list together with the limited time I have..

- I did -NOT- look into the dFlash problem, sorry dreamboxco

- I did -NOT- add transmission, sorry doroshe

- I did -NOT- look into the fulan sh4 problems where certain FTA channels do not playback properly after recording, sorry Tony il Capo

- I did -NOT- add any Vu+ specific plugins such as Kodi, sorry mamamia

- I did -NOT- fix the lcd font for the DM800Se V2, sorry gassi 1950

- I did -NOT- look into the spark remote control issue, sorry paulbs

- I did -NOT- add support for the VisionNet Marvel1, sorry habab

- I did -NOT- enable the kernel modules for DreamTor yet



That doesn't mean I don't look into it later, I just didn't have the time for it.



Now here are the changes compared to the last release:

- Add support for the following receivers:

Herobox EX4 HD

Miraclebox Mini

Miraclebox Mini Premium Plus

Miraclebox Ultra

Xpeed LX3

Formuler 4

Xsarius PureHD

Mut@nt HD1500

- Latest gstreamer 1.9.0.1 snapshot based on recipes from christophecvr:

* Proper fix for HLS segfault on stop

* Re-enable the rtmp seeking and potential segfault fix

* gstreamer1.0-libav is now built against system ffmpeg instead (this differs from chri's recipes) *

* dvbmediasink patches for Vu Solo 4K, hd1265 and hd1500 from oe-alliance

- FFMpeg updated to 3.0.2 and is now installed by default *

- Backports to enigma2 for sh4 (mainly servicemp3.cpp related)

- Fix EPG on sh4 receivers

- exteplayer3 is now installed by default, thank you mx3L and samsamsam *

- gstplayer is now installed by default, thank you mx3L and samsamsam

- Mediatomb is now in the feeds

- MediaPlayer2 is now installed by default, thank you mx3L

- SubsSupport (for MediaPlayer2) is now installed by default, thank you mx3L

- No more russian tuxtxt

- It's now possible to set the debug level again in the UI-settings menu, thank you christophecvr

- Latest enigma2 changes, thank you OpenPLi

- latest openpli-oe-core changes, thank you OpenPLi

- ServiceApp, thank you mx3L !!!



Known issues:

- On spark7162 (and 7111 probably as well) fragmented streams such as hls (m3u8) will skip and freeze a lot.

This happened sometime after the official Gstreamer 1.8.0 release and I didn't found the cause yet.

It is not related to the dvbmediasink since it doesn't happen on mips receivers and the code in the dvbmediasink didn't change.

Configure your streams to play with exteplayer3 instead, read below.

- * On the 64MB Dreambox models (DM800HD, DM800Se and DM500HD) there is not enough space to ship ffmpeg.

This means that exteplayer3 and gstreamer1.0-libav aren't installed as well because they depend on ffmpeg.

See my attached guide to copy over the root filesystem to a storage device.

- Some Dreambox remotes may behave very sensitive.
This causes button presses to register multiple times instead of just once.
As a workaround you can adjust the key interval:
Go to: Menu - System - Input devices - dreambox remote control (native).
Set "Change repeat and delay settings" to yes
Set "Interval between keys when repeating:" to 200ms or 300ms.
Press green button (OK)
Now set the same delay for: "dreambox advanced remote control (native)" as well.

- DM800 first boot will take a while, please be patient. The next boot will be faster.



Thanks for the hard work from mx3L and samsamsam you can now play your IPTV streams with exteplayer3 or gstplayer instead of the default dvbmediasink.

Especially using exteplayer3 will give much better performance on playing HLS streams compared to gstreamer + dvbmediasink.

For example, playing DJING underground 720p never worked very well on my DM800HD and now it does

You can read all about it here: http://forums.openpl...nd-exteplayer3/



In a nutshell here's how it works.

In your /etc/enigma2/ directory you have your channel bouquets with the .tv and .radio extensions.

Inside these files there's this for example:

Code:

#SERVICE 4097:0:0:0:0:0:0:0:0:0:http%3a//cdn.djing.com/tv/u-05.m3u8JING Underground (CDN)#DESCRIPTION DJING Underground (CDN)
By default this will play with the gstreamer dvbmediasink (which is currently broken for sh4).

If you like to play your stream with exteplayer3 instead you should change the 4097 to 5002, like this:

Code:

#SERVICE 5002:0:0:0:0:0:0:0:0:0:http%3a//cdn.djing.com/tv/u-05.m3u8JING Underground (CDN)#DESCRIPTION DJING Underground (CDN)
You can also change it to play with gstplayer using 5001:

Code:

#SERVICE 5001:0:0:0:0:0:0:0:0:0:http%3a//cdn.djing.com/tv/u-05.m3u8JING Underground (CDN)#DESCRIPTION DJING Underground (CDN)
Now let's say you'd like to convert your entire bouquet to play with exteplayer3, simply login to your receiver with telnet/ssh (use PuTTY for Windows).

And issue to the following commands:

First stop enigma2:

init 4

Then change your bouquet to make all streams play with exteplayer3, lets say userbouquet.favourites.tv:

Code:

cd /etc/enigma2sed -i 's/^#SERVICE 4097/#SERVICE 5002/g' userbouquet.favourites.tv
Then restart enigma2:

Code:

init 3
That's it !



You can also make exteplayer3 the default backend for playing back everything.

Go to Menu -> Plugins -> ServiceApp and set exteplayer3 as default.



Keep in mind that with exteplayer3 or gstplayer as default backend you will not have support for external subtitles (.srt for example).

That's why I've added MediaPlayer2 and SubsSupport from mx3L.

I haven't tested it for myself yet, since I simply changed my IPTV streams with type 5002 (exteplayer3) so everything else like DreamPlex for example keeps using the dvbmediasink.



Play around and let us know your findings!

MastaG

################################################## #######################################
Download:

2016-05-22

https://mega.nz/#!5tZH0Krb!ovjRBoFxA...SCRLCJL8ogtil4



Jasper



[coolmeen]

TSimage_3.0_OE-2.0-sim2-dm800se-20160522​

Download:​

http://www.mediafire.com/download/k4...84D-Houara.nfi​



[coolmeen]

Sim2-dreambox-image-dm800se-20160520-84d-FE-CU-Jasper-20160524
​

changes:

FE
added a modified FlashExpander which is deleting directories in /usr to get more free Flash memory

CU
added the Clone Update Plugin (v4.0) to upgrade your image online


Sim2

SSL84d

Enigma2: 2015-12-30-tarball
################################################## #######################################

Webinterface is working.
Teletext is working.
WLAN is working

################################################## #######################################

Extend your Flash memory to an USB memory stick:

1. add an empty USB memory stick to your box (be aware the content will be deleted)
2. prepare your USB memory stick for FlashExpander

Menu
Setup
System
Storage device
choose your USB memory stick which you want to use for FlashExpander (be aware the content will be deleted)
Red Button: Initialize
after the USB memory stick is formatted do not mount it

3. Reboot your box (this is important also if you just use an already ext3 or ext4 formatted USB memory stick without initialize)

4. Extend your Flash memory using FlashExpander

Menu
Plugins
Start Flashexpander
choose your USB memory device and start the copy process (this takes a few minutes)
a message will appear to restart the box

5. check if FlashExpander is working

Menu
Plugins
Start Flashexpander

6. now you should have plenty of free Flash memory
New installed Plugins will be installed on extended Flash on USB

################################################## #########################################

Update your image online:

Please check that you have 9 MB free flash memory before you start the update.

Menu
Plugins
Start SOA Clone Updater 4.0
"Upgrade-your-Image" and press OK
"Restart-your-Receiver" and press OK

The image will be updated
################################################## #########################################

Download:

2016-05-24


https://mega.nz/#!cpYXTC5B!9ThkcpTgh...VBCgs0dt52Djp0



Jasper



[coolmeen]

Powersat_3.2A9-DM800se-sim2-06-06-2016

Machine: Dreambox dm800se
Distro: opendreambox 2.0.0
Enigma2: 3.999git20151231-r32.1
MD5: 324ca22736c72f14b934aeb81dadbdac
SHA256: 3894b999056ef801c1821cb49cbbf775db26dcfaea110f3a10 f07b3313f7971c
new softcammanager bootable blue button tx.Lululla
skin Mx10 skin Beyonce_F1_mod by powersat-team thanks the author
new bootlogo powersat

Downlaod:

​

[url]http://www.mediafire.com/download/o5...84D-Houara.nfi



[/URL]



[coolmeen]

BlackHole-3.0.2B-OE2.0-DM800SE-SIM2-06062016​

Download:​

http://www.mediafire.com/download/1u...016-Houara.nfi​



[coolmeen]

OpenPLi-4.0-expand-eB-sim2-dm800se-20161106










# Flash Images

# USB Stick (ext3/ext4) mount /media/usb (files on the stick will be deleted)

# Call the Plugins and Expand-memory with start ok

# Online Update only via Extensions/Upgrade to activate "ok"

# Have fun

--------------------

# Images flashen

# USB Stick (ext3/ext4) einhängen nach /media/usb (Dateien auf dem Stick werden gelöscht)

# Plugins aufrufen und Expand-memory mit ok starten

# Online Update nur über Erweiterungen/Upgrade mit "ok" aktivieren

# Viel Spaß

--------------------------------------

Update

https://workupload.com/file/AtpL9GE​



[coolmeen]

[h=2]OpenESI 3.0-DM800se-ssl84D-sim2[/h]

BackUp Openesi 3.0 of 06/06/2016 for DM800SE Sim 2
mono tuner

- Gstreamer 1.9.0.
- EPG Importer
- FlashExpander
- CCCam Info
- CCCam 2.2.1
- MGcamd 1.38
- Doscam
- ESI Panel
- ClearMem
- DFlash
- Free Iptv Pandasat v.2.0​

PHP Code:
https://userscloud.com/zqvexdbj3oa9

​



[coolmeen]

Sim2-dreambox-image-dm800se-20160602-#84d-Jasper-20160605



DMM Image Experimental (opendreambox-2.0.0)


Clean, no changes.

Sim2

SSL84d

Enigma2: 2015-12-30-tarball

################################################## #######################################

Webinterface is working.
Teletext is working.
WLAN is working

################################################## #######################################

Download:

2016-06-05

https://mega.nz/#!U9AQGAZC!0vHE6C7pv...YTikO9dmOB30BA



Jasper​



[coolmeen]

BlackHole-3.0.2C-DM800se-sim2-20160610​

Download:​

http://www.mediafire.com/download/gc...84D-Houara.nfi​



[coolmeen]

BlackHole-3.0.2C-OE2.0-DM800se-SIM2-15062016
15/06/2016
*StartWizard:Remove Parental Control from wizard
*Fix Mounting HDD and usb
*Add New arabic translation(ar.po)
*Fix Some Bugs(you can Now Test IptvPlayer)

​

Download:​

http://www.mediafire.com/download/cv...016-Houara.nfi​



[coolmeen]

[h=2]Openspa-6.0.003-dm800se-sim2-22062016-gs[/h]

this image openspa-6.0.003-GB-X3- usb
modify to work on sim2 dm800se
(patches from jasper...thanks)

CLEAN

WORKS ON
flash
(i dont have test on anther multiboot BUT with obh 0.4 or openatv-5.3 on flash, openmultiboot works with openspa-6.0.003 on multiboot with http://www.dreamoem.com/showthread.p...-openmultiboot-openmultiboot from line : Turn off your receiver and take off usb stik and follow .....)
this image is big and after install use flashexpader or multiboot


on zip there is ,nfi , and 2 folders, paste gstreamer-1.0 folder on /usr/lib
and openwebif on /usr/lib/enigma2/python/Plugins/Extensions
after flashexpader.

from openspa addons , after install - if you want, download MetrixJR skin -unstable,but works-(a very very nice skin)

gstreamer 1.9.0 - lcd works

After install any openSPA plugin - enigma2 auto restart

DOWNLOAD

http://www.mediafire.com/download/35...1062016-GS.zip

FEEDS-ADDONS WORKS
UPDATE your own risk WORKS

TELNET - FTP : USER : root , PASS : openspa​



[coolmeen]

italysat-release-8.0.212-dm800se-sim2-2016.04.13

​

PHP Code:
https://mega.nz/#!XUYRwYyY!WylcLA45jXEEa96S30ek5bvT1en0QKkbxMZn6vY47HU

​

​



[coolmeen]

BlackHole-3.0.2C_DM800se-sim2-20160625​

25/06/2016
*Blackhole Device Manager Fix Listdir Media
"/universe","/media/hdd","/media/usb","/media/downloads","/media/music","/media/personal","/
media/photo","/media/video"
*Fix download Bootlogo from Blackhole Team Addons
*Menu.xml fix Factory reset
*Fix radio.mv​

WiFi has been tested and works fine​

Download:​

http://www.mediafire.com/download/4b...625-Houara.nfi​



[coolmeen]

OpenPli 4.0-Sim2-dm800hd-backup by intercepter

This backup is based on OpenPLi-4.0-beta-dm800se-20160622 image

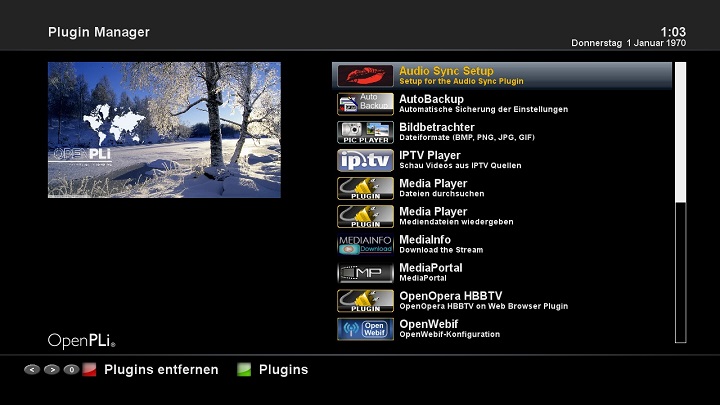

Backup includes plugins:

IPTV Player 127.05.20.00
Mediaplayer2
TsTube 1.2 by mfaraj57(best You Tube E2 plugin)
Cams:CCcam (ver.2.1.3),OScam (ver.emu svn11213),OScam-CCcam
SubsSupport downloader
SubsSupport settings
Skin Turbo-MOD by RAED
Forecast Weather plugin
Cronmanager
Systemtime 1.4
My motor settings from 75°E to 45°W(scaned 1.6.2016)

I deleted all unused language and wi-fi drivers bacause there is not enough space on flash,but this
package include all files and instruction.

Please read instruction before flash box!!!


http://www.mediafire.com/download/m1...0160622%29.rar​



[coolmeen]

OpenPLi_4.0-sim2-DM800se_wIPTV_v19-27062016​

It took me a while since I was very short on time and I had to re-install my build-rig, move to a new feed-server etc...

SO DUE TO A NEW FEED-SERVER ONLINE UPDATE FROM PREVIOUS IMAGES IS NOT POSSIBLE!

DON'T TRY TO CHANGE THE URL IN THESE OLD IMAGES SINCE THERE'S BEEN TOO MANY CHANGES WHICH WILL BREAK THINGS!

PLEASE FLASH A CLEAN IMAGE INSTEAD!


So here's whats up:

- Brand new bootlogo thanks to .:MarcinO:.

- OpenPLi enigma2 rev: 4bf2f1e45593065f9e2b4563f30463487b727c94

- OpenPLi oe-core rev: d76cfe6a39c6613ac77578840b214f0f1e748a39

- Taapat's Fulan enigma2 rev: 2a984c500f5b2ea657f68742b7dc4e47f5586483

- New receivers supported:

* osmini

* osminiplus

* spycat

* spycatmini

* et7000mini

* xpeed lx

* xpeed lx pro

- New feed server located in Europe thanks to the Japhar team!

- New Japhar IPTV list

- No more use of UPX compression on ARM platform (should fix the Vu+ Solo 4K build)

- Latest gstreamer 1.9 revision from master branch

- FFmpeg 3.0.2 with extra options enabled (based on oe-e recipe)

- Kodi 16.1 for Vu+ Solo 2, Solo Se, Duo 2, and Solo 4K (thanks to mx3L for his bsp + recipes)

- More wifi drivers (mt7601, rt7777 etc..) taken from oe-alliance

- Slightly newer v4l modules for kernel 2.6.18 (dm800)

- New version of mx3L's serviceapp now supports EPG and embedded subtitles

- New version of exteplayer3

- Flash extender PPanel for dm800, dm800se and dm500hd (* Please read below)

- Many other changes I forgot to mention

Download:
http://www.mediafire.com/download/2p...016-Houara.nfi​
